Fast Recovery Diodes

Dynex Fast Recovery Diode (FRD) modules range from 1.2kV to 6.5kV at 250A to 1200A and are designed to work as the input rectifiers for the existing Dynex range of IGBT modules.

FRD

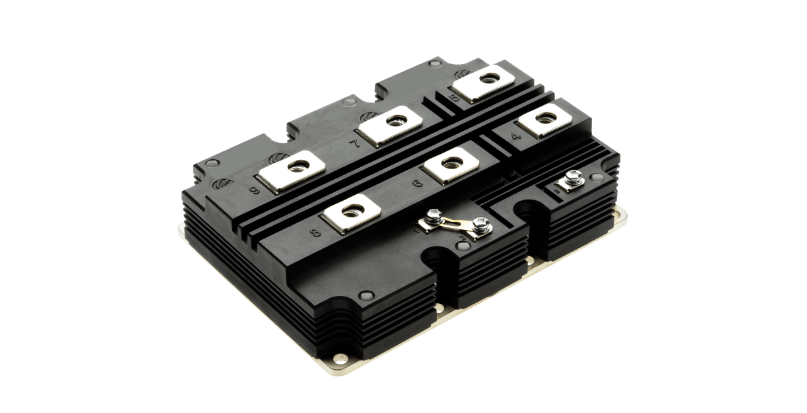

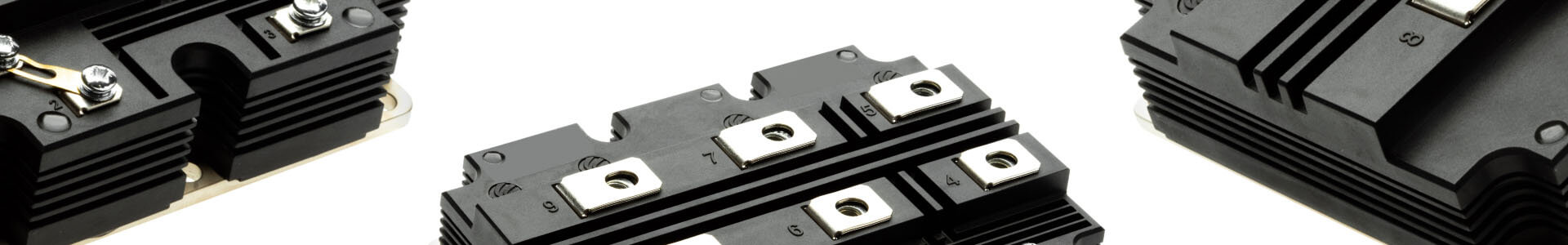

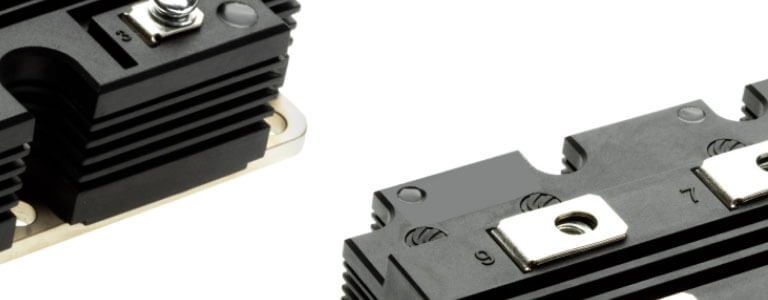

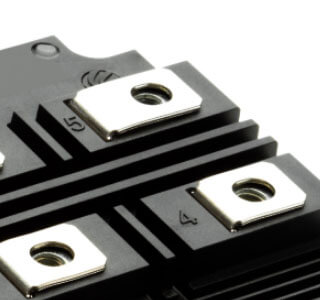

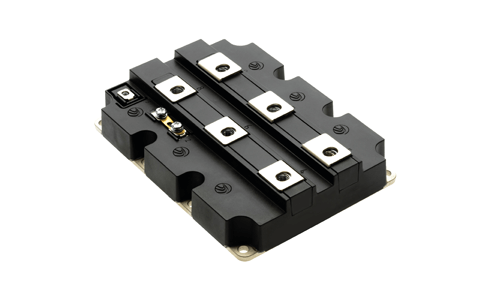

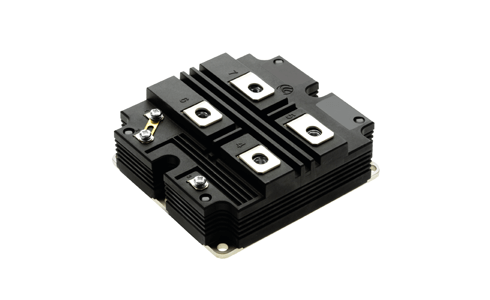

Dynex Fast Recovery Diode Modules



Dynex FRD modules regulate electricity flow to ensure high reliability and increased efficiency in motor drives and other variable speed processes.

FRD

FRD Designs

The high-voltage Fast Recovery Diode modules have been designed for use in rail traction, industrial motor drives, induction heating and power generation.

The FRD modules are designed to match and work as the input rectifiers for the existing Dynex range of IGBT modules.

Fast switching times and low reverse recovery losses allow high frequency operation, making the device suitable for the latest drive designs employing PWM and high frequency switching.

FRD

FRD Features

  • Fast switching
  • Low reverse recovery charge
  • High switching speed
  • Low forward volt drop
  • Isolated AlSiC base with AlN substrates
  • Single, double and triple diode configurations available with current ratings up to 3600A
