Clamps

Dynex offers a range of standard clamps designed to accommodate press pack semiconductors with tie rod centres from 75mm to 210mm and clamping force from 5kN to 138kN.

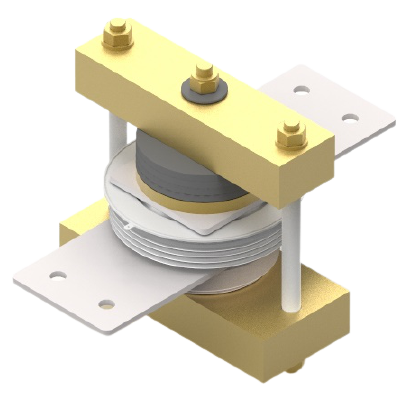

Standard Range of Clamps

Dynex engineers use disc springs to apply the clamping force over a wide temperature range.

The clamps incorporate pressure indicators to make installation simple and include a zinc plating with a yellow Passivated finish to offer enhanced corrosion protection.

If the clamp you require is not available in our standard range, our Dynex engineers can provide a solution to meet individual needs.

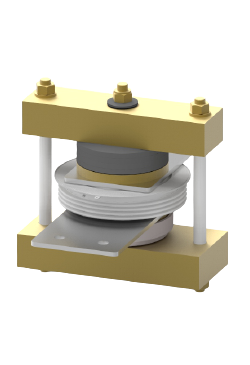

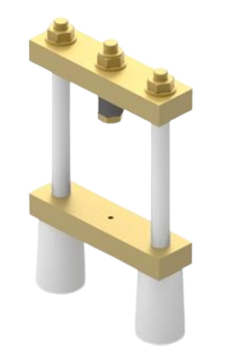

DC 75 Centre Bar Clamp

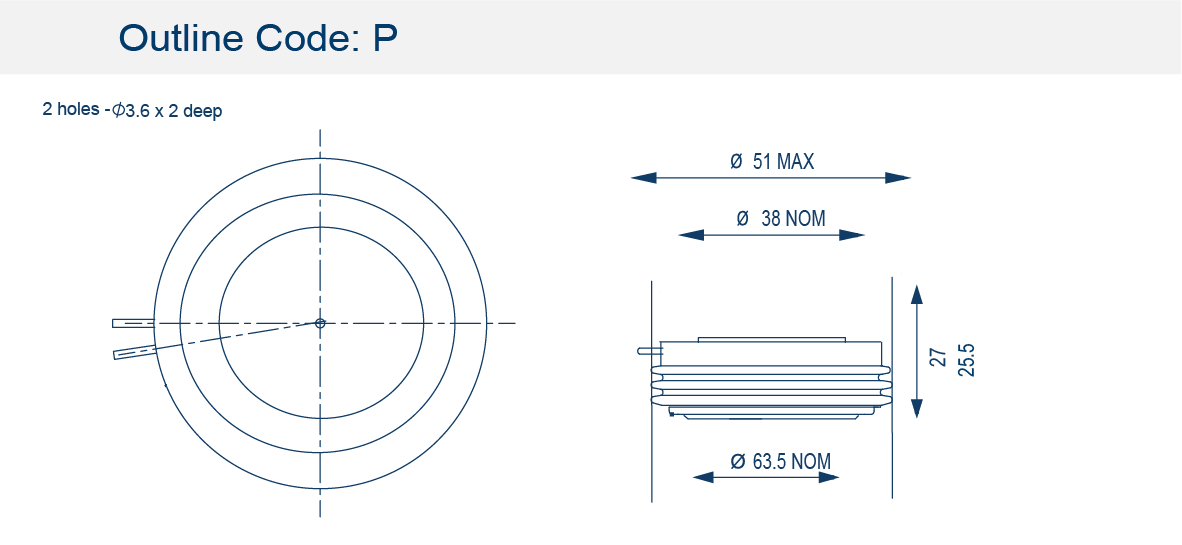

The DC75 has been designed to support the common semiconductor packages shown below:

Dynex
Outline
Flange Diameter
(mm)
Height
(mm)

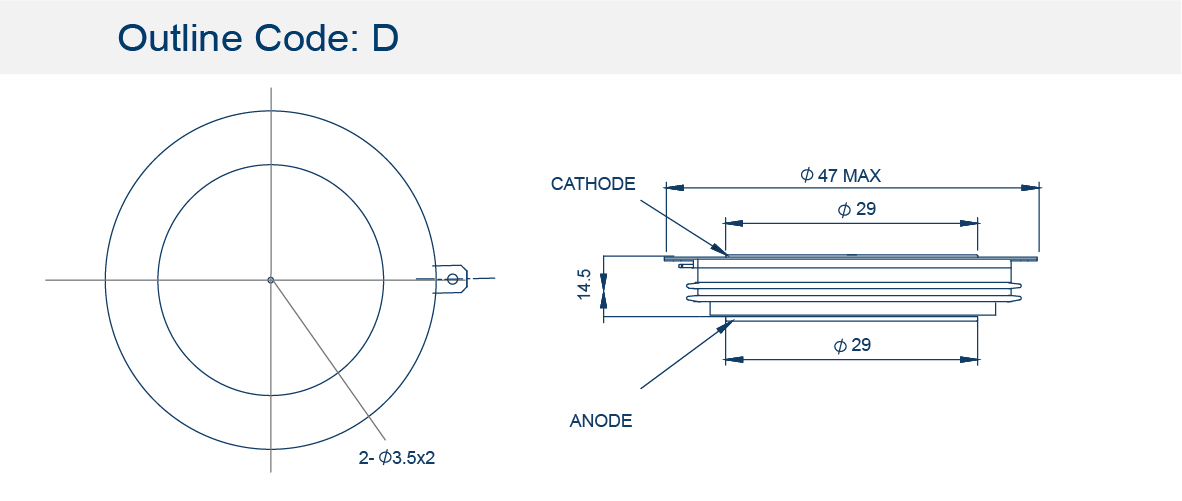

D 47 14.5

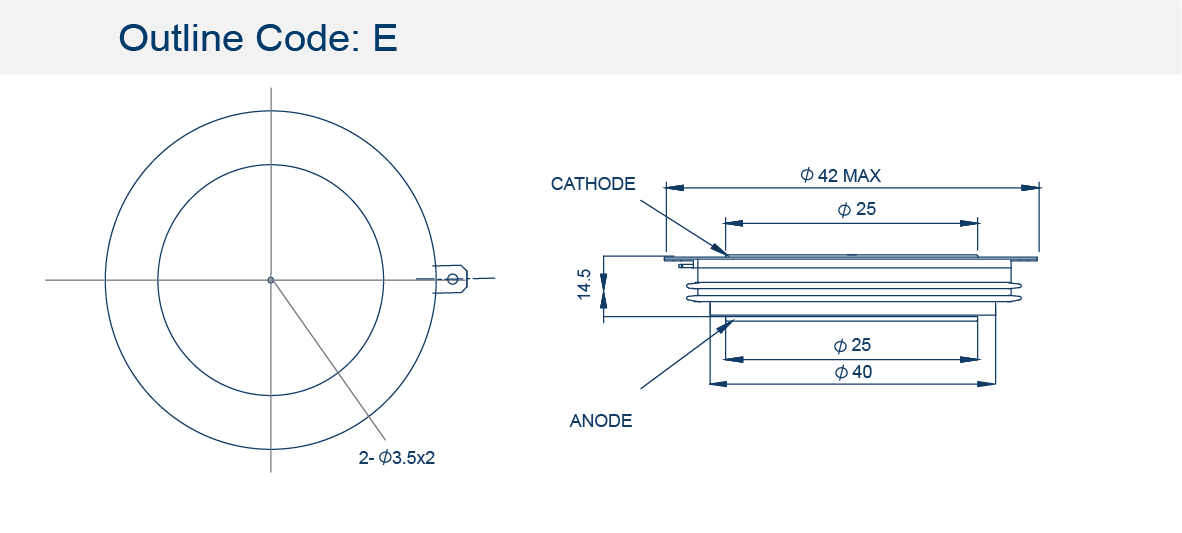

E 42 14.5

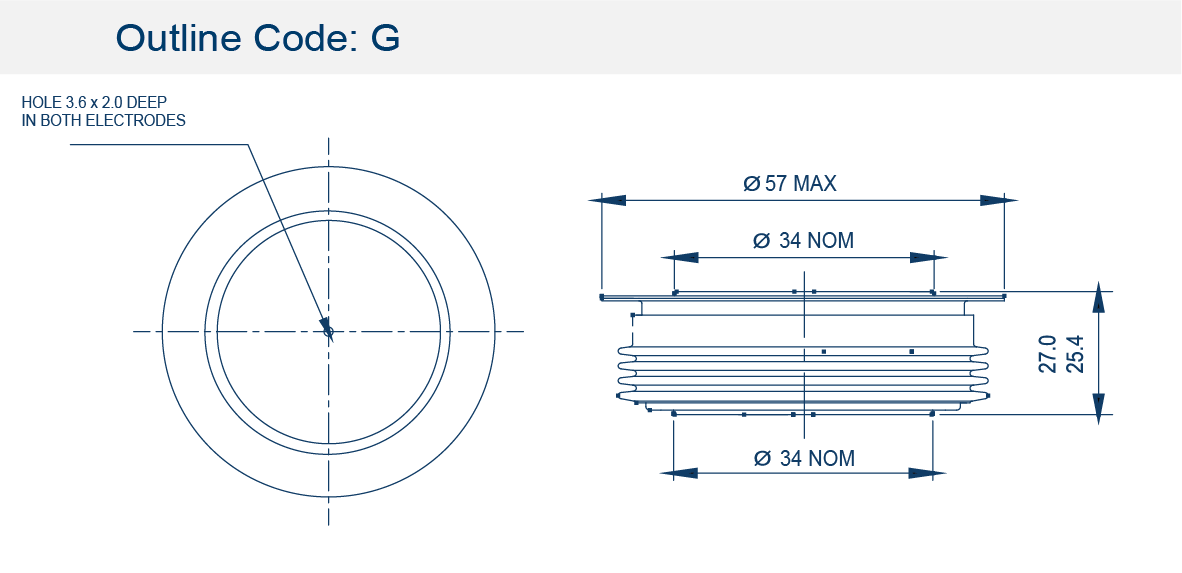

G 58 26.5

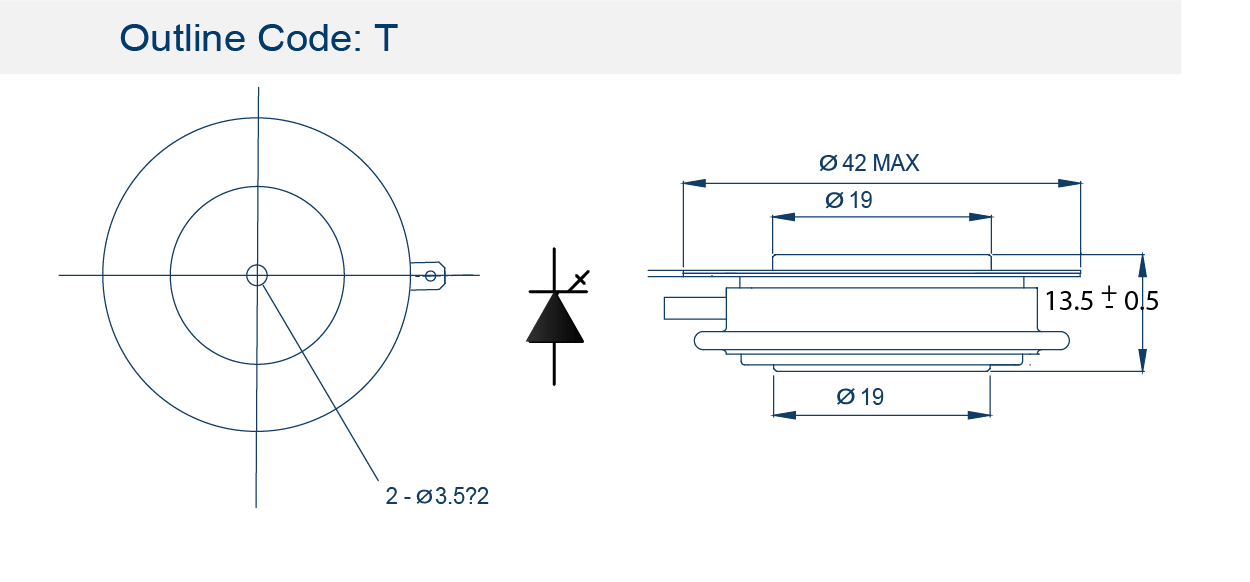

T 42 13.5

Features:

  • DC clamp series with tie rod centres - 75mm.
  • Clamping forces available (kN) - 5, 11 and 15.

Contact Us

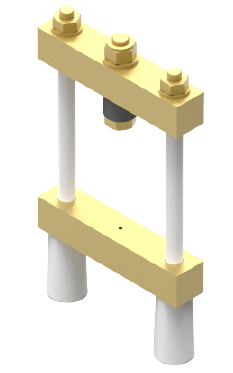

DC 100 Centre Bar Clamp

The DC100 has been designed to support the common semiconductor packages shown below:

Dynex
Outline
Flange Diameter
(mm)
Height
(mm)

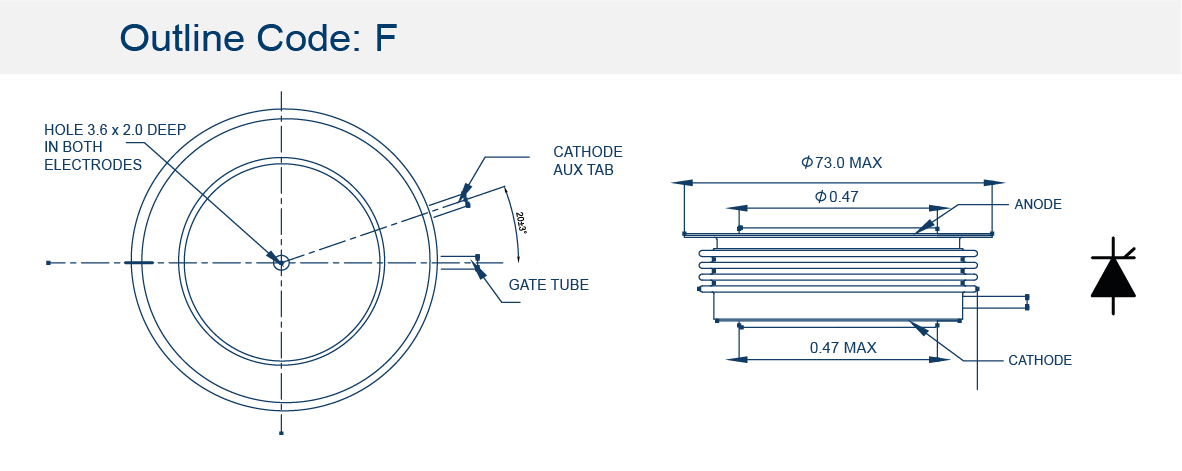

F 75 26.5

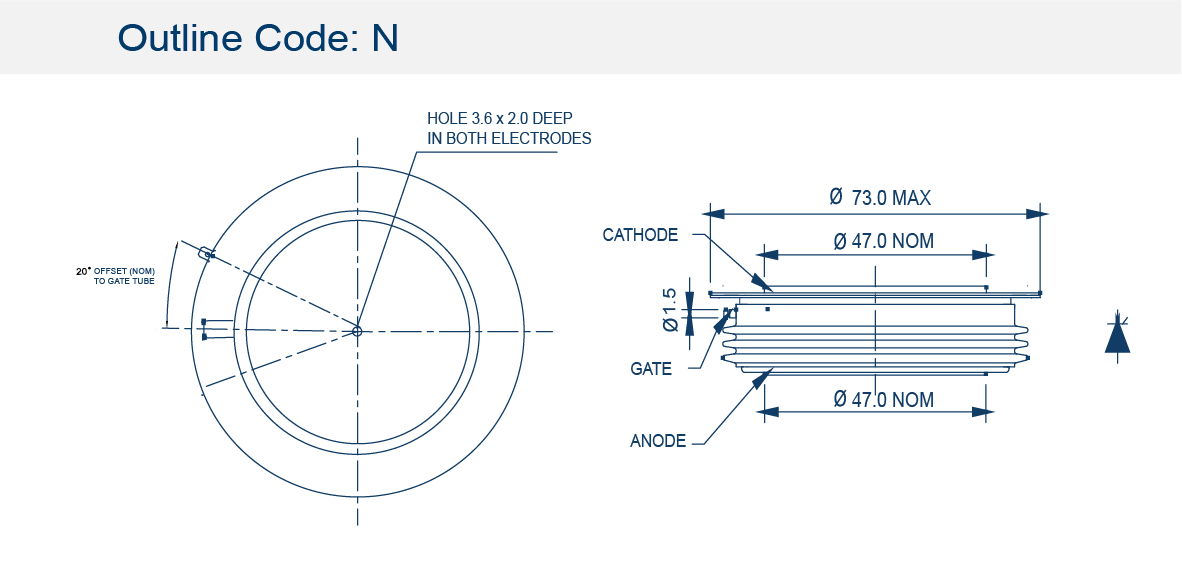

N 73 35.15

Features:

  • DC clamp series with tie rod centres - 100mm.
  • Clamping forces available (kN) - 20 and 22.

Contact Us

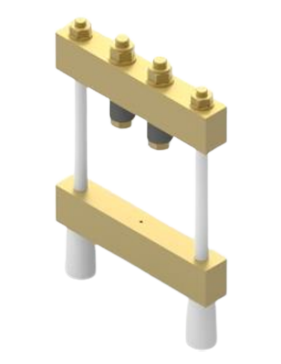

DC 145 Centre Bar Clamp

The DC145 has been designed to support the common semiconductor packages shown below:

Dynex
Outline
Flange Diameter
(mm)
Height
(mm)

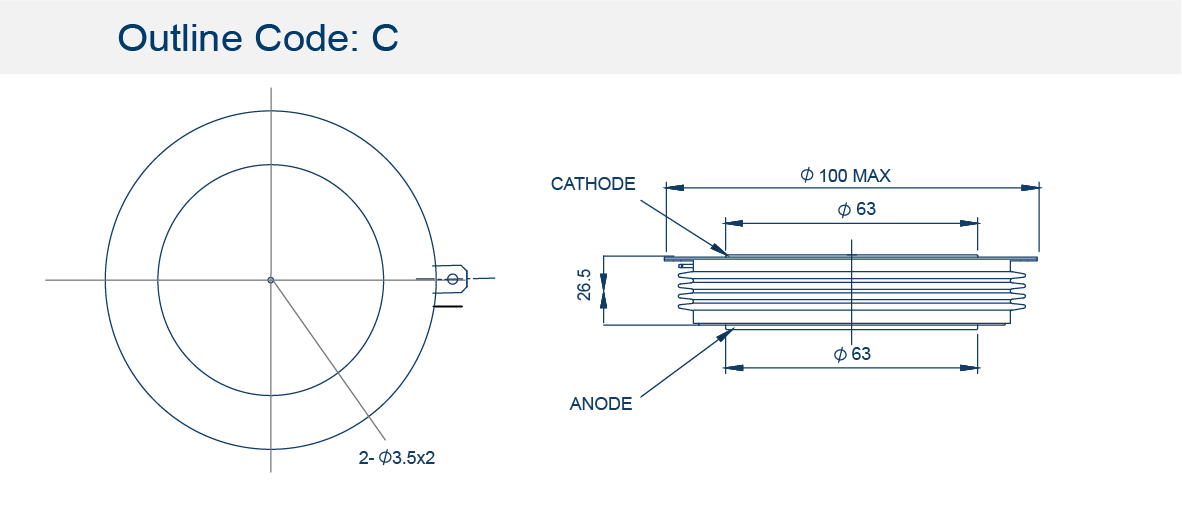

C 102 28

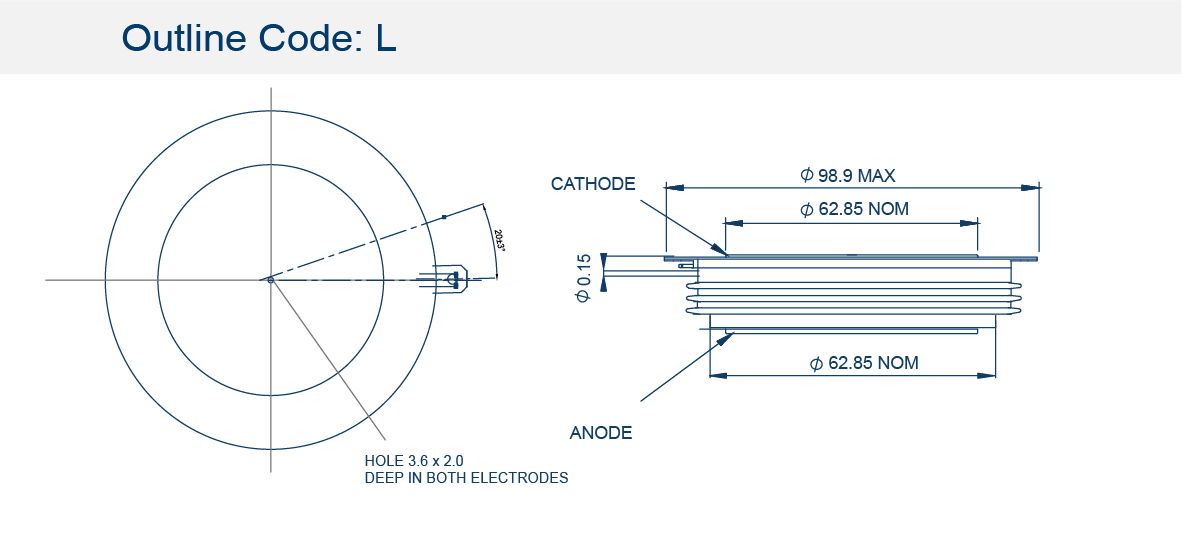

L 102 36

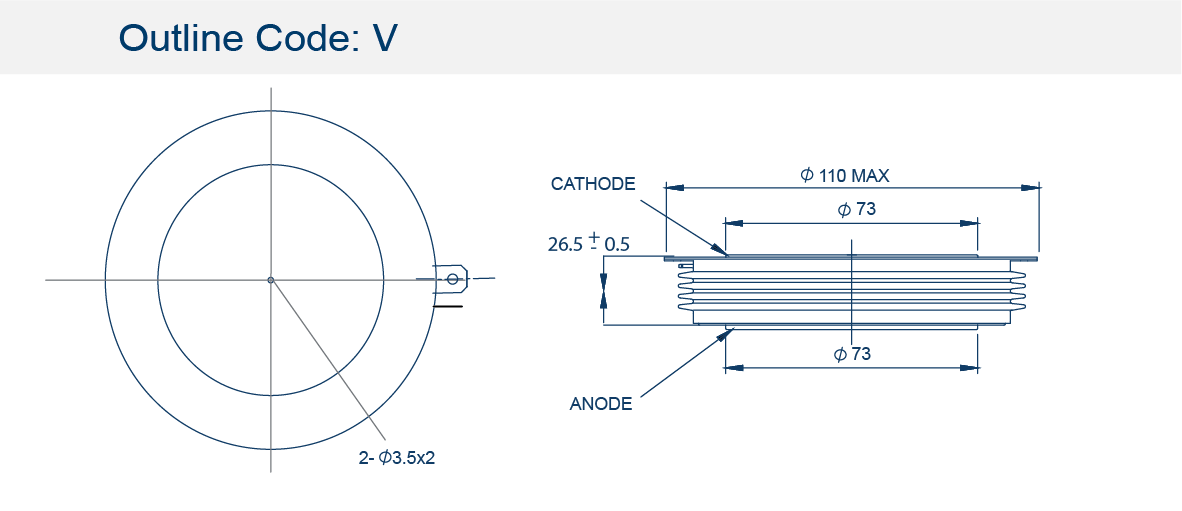

V 112 29

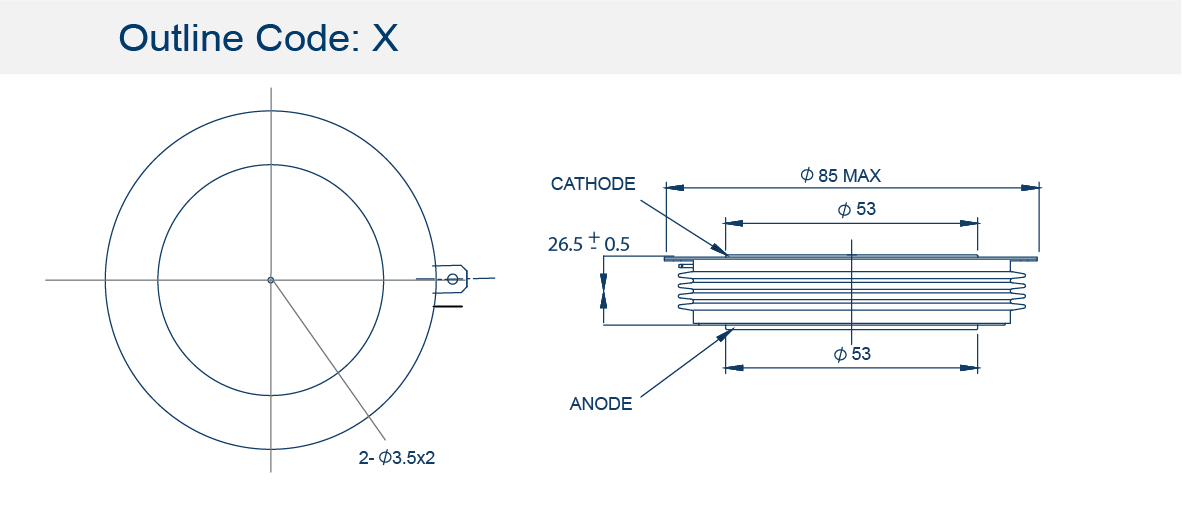

X 85 27

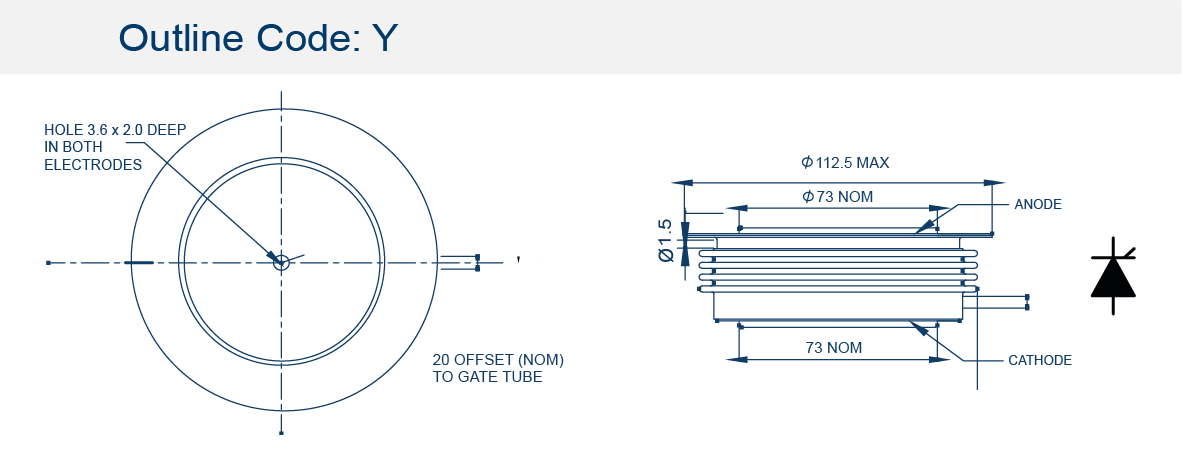

Y 120 36

Features:

  • DC clamp series with tie rod centres - 145mm.
  • Clamping forces available (kN) - 20, 30,35, 43 and 55.

Contact Us

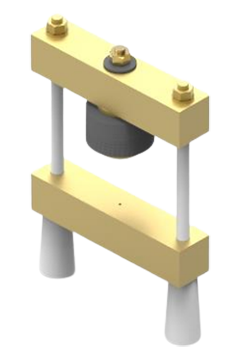

DC 178 Centre Bar Clamp

The DC178 has been designed to support the common semiconductor packages shown below:

Dynex
Outline
Flange Diameter
(mm)
Height
(mm)

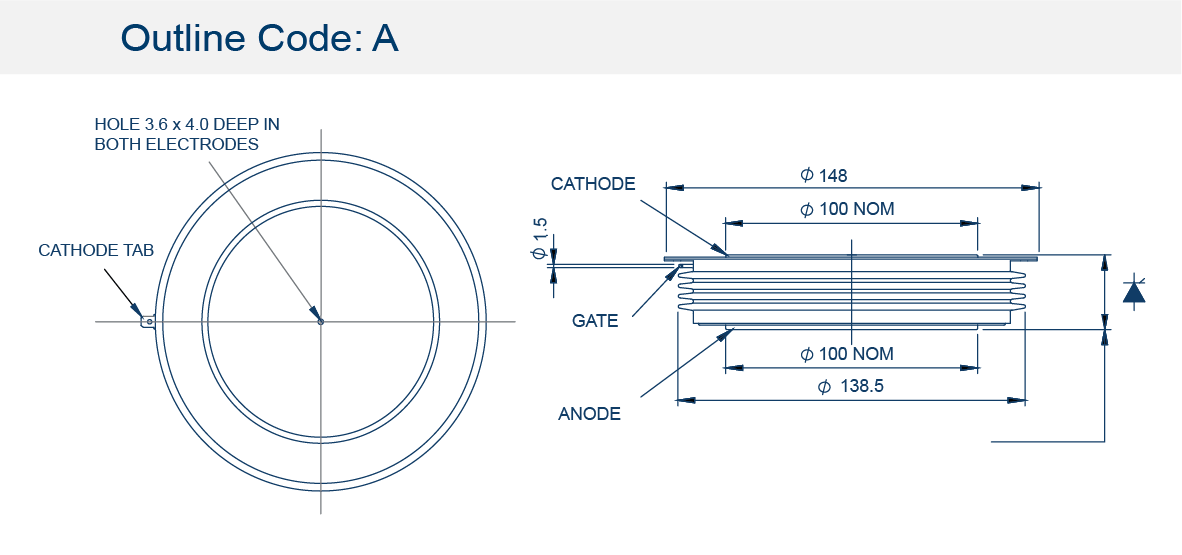

A 148 35

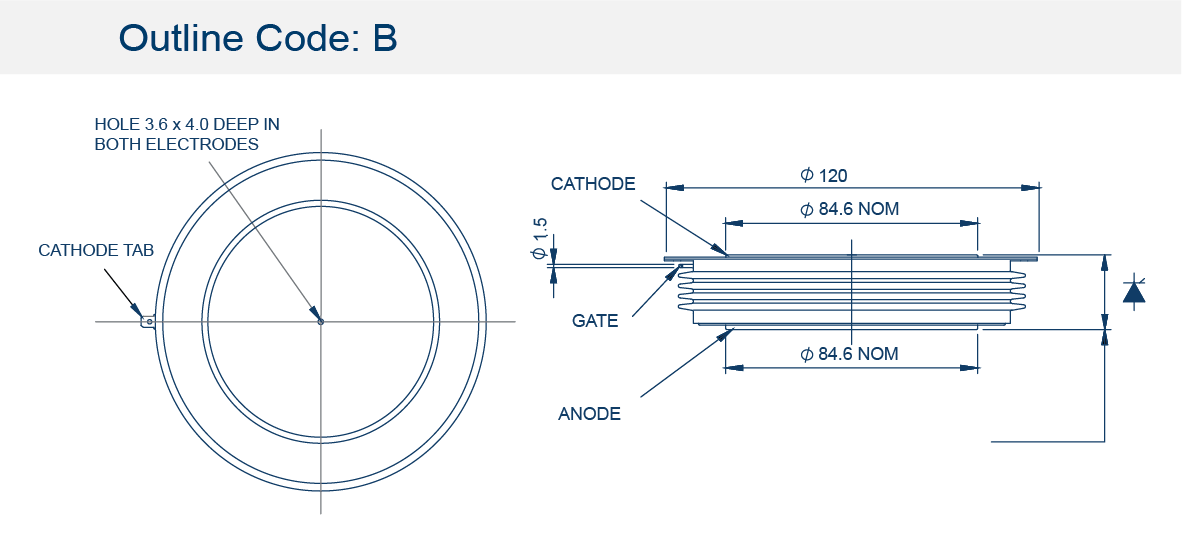

B 120 35.6

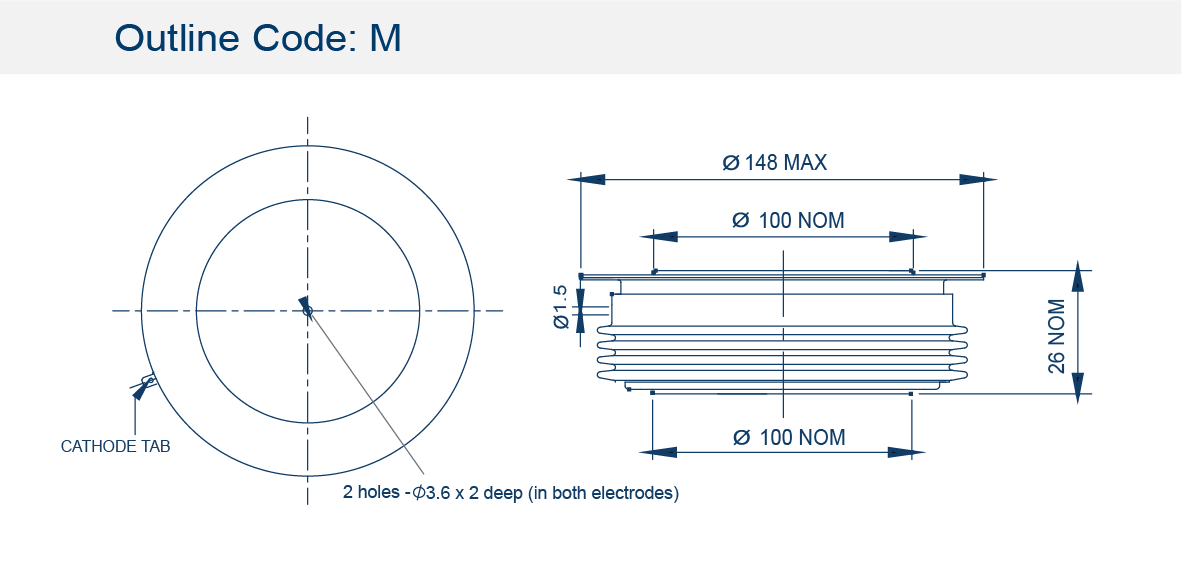

M 148 26.5

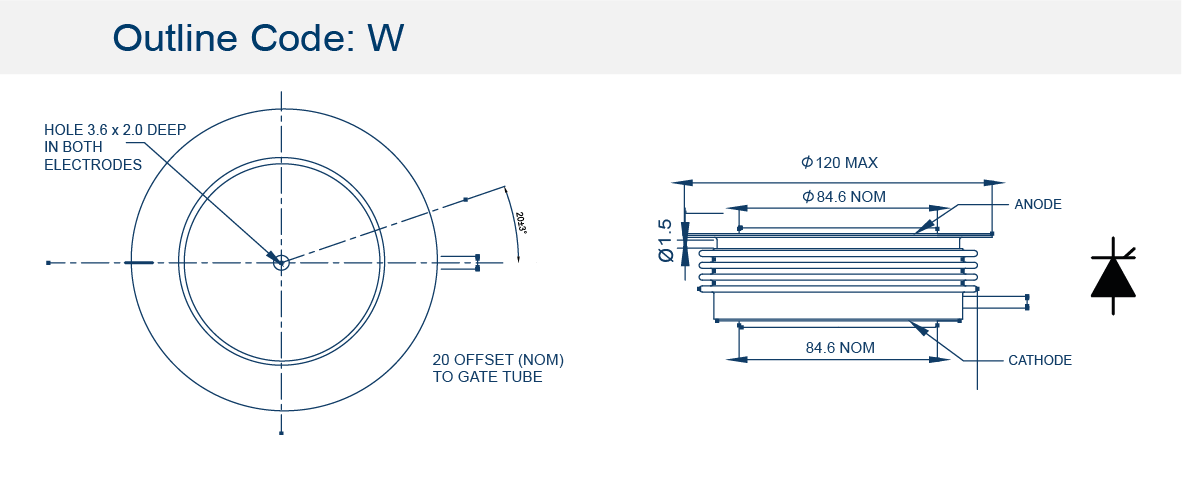

W 120 26.5

Features:

  • DC clamp series with tie rod centres - 178mm.
  • Clamping forces available (kN) - 73 and 83.

Contact Us

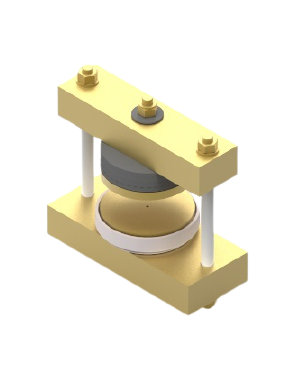

DC 178-2 Centre Bar Clamp

The DC178-2 has been designed to support the common semiconductor packages shown below:

Dynex
Outline
Flange Diameter
(mm)
Height
(mm)
A 148 35
B 120 35.6
M 148 26.5
W 120 26.5

Features:

  • DC clamp series with tie rod centres - 178mm.
  • Clamping forces available (kN) - 73 and 83.

Contact Us

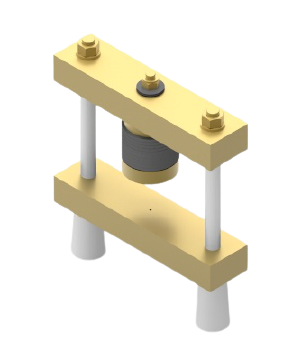

DC 210 Centre Bar Clamp

The DC210 has been designed to support the common semiconductor packages shown below:

Dynex
Outline
Flange Diameter
(mm)
Height
(mm)
A 150 35

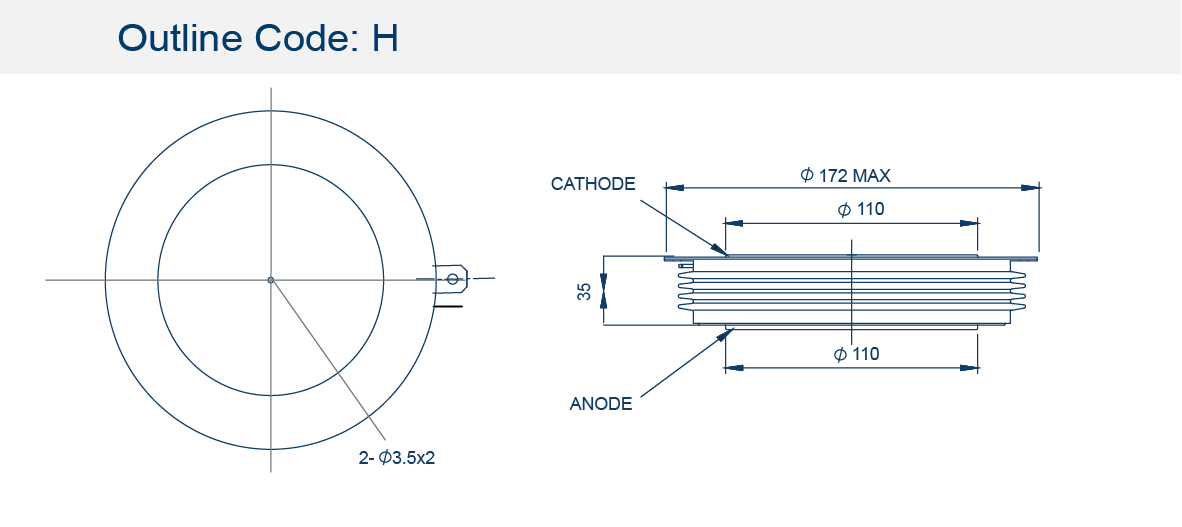

H 172 35
M 150 26.5

Features:

  • DC clamp series with tie rod centres - 210mm.
  • Clamping forces available (kN) - 83, 120 and 138.

Contact Us

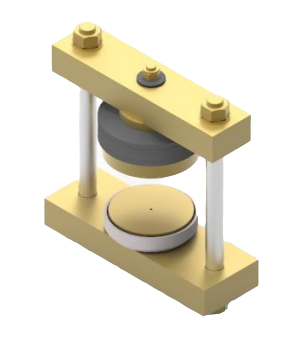

DC 210-2 Centre Bar Clamp

The DC210-2 has been designed to support the common semiconductor packages shown below:

Dynex
Outline
Flange Diameter
(mm)
Height
(mm)
A 150 35
H 172 35
M 150 26.5

Features:

  • DC clamp series with tie rod centres - 210mm.
  • Clamping forces available (kN) - 83, 120 and 138.

Contact Us
